Correct sizing is one of the most important factors in ensuring effective performance of a water hammer control system. An undersized device may fail to absorb sufficient pressure surge, while an oversized configuration may lead to unnecessary installation cost and inefficient system integration.

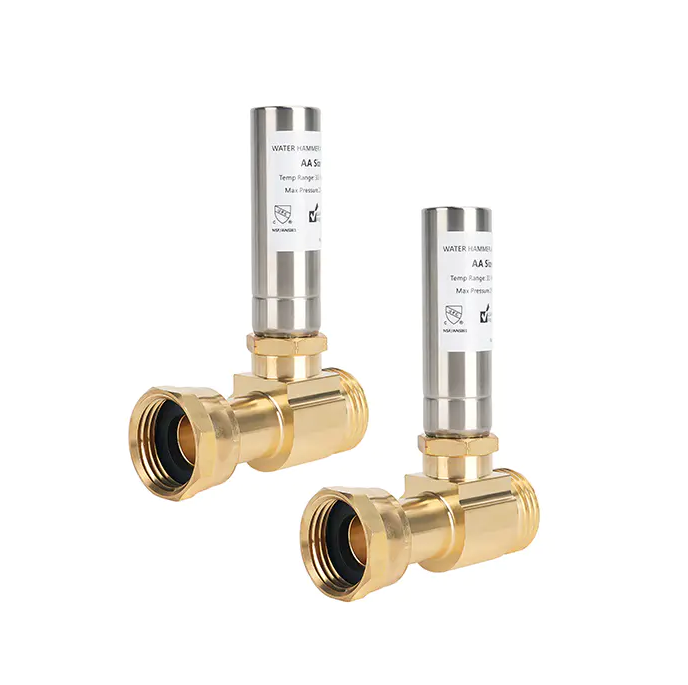

A Stainless Steel Water Hammer Arrestor must be selected based on hydraulic load, pipe characteristics, and fixture demand. Understanding these variables helps ensure stable pressure control and long-term reliability.

Key factors affecting sizing

Several engineering parameters influence the correct selection:

1. Fixture unit load

Fixture units represent water demand from plumbing fixtures. Higher fixture loads generate more frequent and stronger pressure changes. Industrial sizing often uses cumulative flow calculations rather than simple fixture counts.

2. Pipe diameter

Larger diameter pipes carry more water volume, increasing potential shock energy. For example:

1/2”–3/4” lines: light to medium shock loads

1”–2” lines: moderate industrial loads

3” and above: heavy-duty process systems

3. Flow velocity

Velocity plays a key role in water hammer intensity. Systems operating above 1.5–2.0 m/s require stronger damping capacity.

4. System pressure

Typical residential systems operate between 40–80 PSI, while industrial systems may exceed 150 PSI. Higher pressure requires larger gas cushion capacity inside the arrestor.

Standard sizing classification

Industry-standard sizing often uses classification ranges such as AA to F or equivalent load ratings. Each category corresponds to a fixture unit capacity range, ensuring predictable performance across system designs.

A Stainless Steel Water Hammer Arrestor is typically selected using:

Load category matching fixture demand

Pressure rating compatibility

Pipe size compatibility

Installation space constraints

Installation sizing rules

Engineering guidelines often recommend:

One arrestor per fast-closing valve branch

Installation within 1–2 meters of shock source

Additional arrestors for branch lines exceeding 20 feet

Multiple units for high-demand parallel systems

These rules help distribute pressure absorption evenly.

Pressure and preload considerations

Most stainless steel arrestors include a pre-charged gas chamber, typically nitrogen-filled. Common preload values range from:

40 PSI for low-pressure systems

50–60 PSI for medium to high-pressure systems

Correct preload ensures proper piston response during pressure surges.

Common sizing mistakes

Incorrect sizing may lead to issues such as:

Persistent pipe noise despite installation

Premature wear of internal seals

Insufficient damping during valve closure

Overloading of arrestor chamber

These issues are often related to underestimating system flow dynamics.

Conclusion

Proper sizing ensures that a Stainless Steel Water Hammer Arrestor performs effectively within a given system. By considering pipe diameter, flow velocity, and system pressure, engineers can achieve stable hydraulic control and extend the service life of piping infrastructure.
