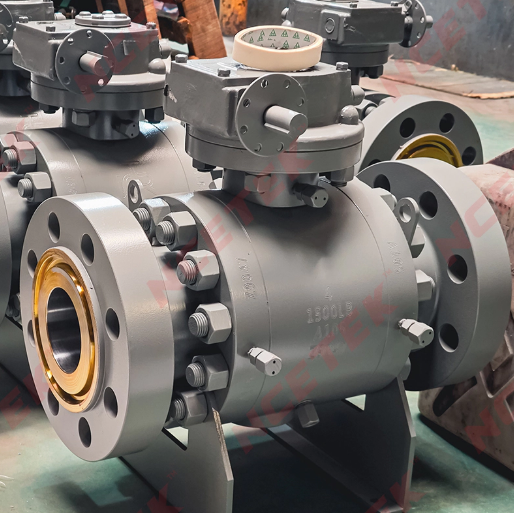

Industrial pipeline systems can place substantial mechanical demands on flow control equipment, particularly in large-diameter, high-pressure, or continuously operated installations. A Forged Steel Trunnion Mounted Ball Valve combines a forged steel body with a mechanically supported ball structure to address these demanding conditions. Its overall performance depends on coordinated engineering across material selection, forging, machining, sealing, assembly, actuation, and quality inspection.

Forged steel construction provides an important structural foundation for industrial valve production. The forging process shapes heated metal under controlled force, producing a dense material structure suitable for demanding mechanical applications. Carbon steel, stainless steel, and alloy steel can be considered for different service environments according to pressure, temperature, corrosion exposure, and process media. Material selection should also account for the compatibility of internal components and sealing materials.

The trunnion-mounted configuration provides mechanical support for the ball at designated points within the valve. Because the ball is supported rather than relying entirely on line pressure, the arrangement can influence the load transmitted through the seats and the operating torque required to rotate the ball. This becomes particularly relevant as valve dimensions and pipeline operating conditions increase.

Precision machining follows the forging process and determines the accuracy of many critical interfaces. The ball chamber, trunnion supports, seat pockets, stem connections, and pipeline connection surfaces must be manufactured within appropriate tolerances. The ball itself requires a controlled surface finish to establish consistent interaction with the seats. Accurate machining of the stem and related components also supports predictable transmission of operating force.

Sealing components should be selected according to the intended service environment. Seats must maintain appropriate contact with the ball while accommodating the expected pressure and temperature range. Chemical compatibility is also important when the valve handles process fluids that could affect sealing materials. Stem sealing provides another important barrier between the internal process area and the external environment and should be considered as part of the complete valve sealing system.

Actuator integration can influence the final valve configuration. Depending on the project, pneumatic, electric, hydraulic, or manual operating arrangements may be used. The actuator should provide suitable movement and torque while remaining compatible with the stem and mounting structure. Proper coupling helps transfer operating forces effectively and reduces the possibility of unnecessary mechanical stress during repeated cycling.

Quality control should be incorporated throughout production rather than limited to final inspection. Forged components can undergo material and dimensional verification before machining. Critical machined surfaces should then be checked against design requirements. During assembly, technicians should verify the positioning of the ball, trunnion supports, seats, stem, and sealing components.

Final testing provides additional confirmation of valve integrity and operation. Pressure testing can evaluate the body under controlled conditions, while leakage testing can assess closure performance. Functional testing can verify that the operating mechanism moves the ball correctly. Testing procedures and acceptance criteria should correspond with applicable standards and project specifications.

Applications for this type of valve can include oil and gas transmission, petrochemical processing, gas treatment, power generation, and other industrial pipeline systems. Each application introduces its own combination of pressure, temperature, media characteristics, installation requirements, and operating frequency. The valve should therefore be selected based on the complete service environment rather than a single specification.

Installation planning can have a direct influence on long-term performance. Large valves and actuators require adequate access for transportation, lifting, installation, inspection, and maintenance. Pipeline alignment should be carefully controlled to minimize external forces on valve connections. Where valves are installed in restricted or underground locations, suitable stem extensions and operating arrangements may also be required.

Maintenance planning should begin during equipment selection. Operators may need to monitor stem sealing, actuator operation, external connections, and other accessible components according to the service environment. Maintaining material records and testing documentation can simplify future maintenance and equipment identification.

For demanding industrial pipeline projects, Forged Steel Trunnion Mounted Ball Valve selection should consider forging quality, supported ball construction, sealing technology, machining accuracy, actuator compatibility, testing, and installation conditions as an integrated system. Coordinated manufacturing can support consistent performance across different valve configurations and applications. Industrial valve solutions and product configurations can be reviewed at https://www.ncevalve.com/product/ when evaluating equipment for demanding flow control systems.
