How Insert Thickness Affects Product Fit Inside Packaging

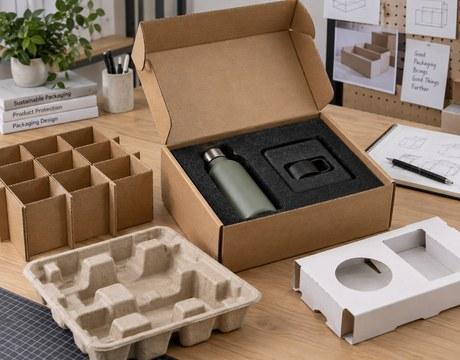

The thickness of a packaging insert can change how firmly a product sits inside a box, how much pressure reaches its surface, and how much internal space remains available. Different insert materials behave differently when their thickness changes. Information about foam, cardboard, corrugated, molded pulp, and related structures can be found through Inserts Hub, where different forms of internal packaging are discussed.

An insert that is too thin may not provide enough structural separation around the packed item. On the other hand, an unnecessarily thick insert can reduce usable space and place additional pressure on the product. Thickness therefore needs to work together with product dimensions, material type, weight, and box size.

Insert Thickness Is More Than a Material Measurement

Thickness is often treated as a simple material measurement, but its effect goes beyond the number shown on a drawing.

For foam, thickness determines how much compressible material surrounds the product. For cardboard, thickness can affect stiffness and folding behavior. Corrugated material has an additional factor because its internal fluted structure influences both depth and compression resistance.

A packaging insert also includes different thickness areas.

These may include

• Material below the product

• Material around side walls

• Material between separate cavities

• Material above raised sections

• Structural folds beneath platforms

Each area performs a different function, so using the same measurement throughout the insert is not always necessary.

Why Bottom Thickness Matters

The section underneath the product supports its weight throughout storage and handling.

When this layer is very thin, a heavy object may compress the material or place stress on the bottom of the box. This becomes particularly relevant when products have narrow feet, sharp corners, or small contact areas.

A wider support surface distributes weight differently from a small contact point.

For example, a flat container may spread its weight across most of the insert cavity. A bottle with a narrow base concentrates more weight in a smaller area.

The insert design therefore needs to consider both total product weight and how that weight reaches the material.

Thickness and Foam Compression

Foam is commonly used where the insert needs to conform around part of a product.

The depth of foam surrounding an item affects how far the material can compress before the product reaches another surface.

Soft foam may compress considerably under weight. Firmer foam may move less but can transfer pressure differently.

This means that two foam inserts with the same physical thickness may not behave in the same way if their densities or material structures differ.

A cavity should also avoid gripping the item with excessive force. If an opening is much smaller than the product, the foam can remain permanently compressed and may make removal difficult.

A small amount of controlled compression can help maintain position, but excessive compression changes how the material performs.

How Thickness Influences Cardboard Inserts

Cardboard inserts normally depend on folds, tabs, slots, walls, and platforms rather than deep cushioning.

Increasing board thickness can make some structures more rigid, but it also changes how easily the material folds.

A fold designed for thinner board may behave differently when heavier board is used. The crease may need additional allowance so the panels close correctly.

Thicker board also occupies more space along folded corners.

When several panels overlap inside a small box, these differences can become noticeable. An insert that appears correct in a flat drawing may become too tight once all layers are folded into position.

Corrugated Thickness and Flute Structure

Corrugated inserts include liner sheets around a fluted center.

The flute creates additional depth compared with ordinary paperboard. This internal structure helps the material resist certain types of compression while remaining relatively lightweight.

Different flute structures create different material thicknesses.

A thicker corrugated insert may suit situations where separation and stacking strength are important, but it also uses more internal box space.

For small products, a thinner flute profile may allow more accurate folds and smaller internal dimensions.

The direction of the flutes should also be considered because corrugated board does not respond identically to force from every direction.

Cavity Depth and Product Height

Insert thickness is closely related to cavity depth.

A cavity should hold enough of the product to maintain its intended position. If it is too shallow, a tall item may tilt or leave the cavity during handling.

A cavity that is extremely deep can create another issue. The product may become difficult to remove, particularly if the opening closely follows its shape.

Finger spaces, side openings, or exposed sections are sometimes included so the packed item can be lifted without pulling directly against the insert.

The required cavity depth depends partly on the product's center of gravity.

Tall objects with narrow bases generally respond differently from low, wide objects. The insert should support the parts that control the product's movement rather than simply surrounding as much of the product as possible.

Thickness Between Multiple Cavities

Multi-product packaging requires enough material between individual compartments.

If the walls between cavities are too narrow, the material can bend, tear, or compress when products move toward each other.

This spacing becomes more important as product weight increases.

Glass containers may require enough separation to prevent contact even if the insert experiences temporary deformation. Electronic parts may need separation around delicate connectors or exposed components.

The thickness of dividing sections should therefore relate to both material strength and the characteristics of the packed products.

Thick Inserts Can Create Fit Problems

Using additional material does not automatically improve an insert.

Excessive thickness can create several fit problems.

The outer box may no longer close correctly. Products may become difficult to remove. Printed surfaces can rub against insert walls. Folded panels may overlap more than expected.

Additional thickness also changes the internal dimensions available for the product.

This is particularly noticeable in small boxes where a difference of only a few millimeters can affect several parts of the layout.

The insert and outer box should therefore be considered as one internal system instead of as separate components.

Material Thickness and Product Tolerance

Manufactured products are not always completely identical.

Glass containers, molded components, handmade items, and filled packages can have slight dimensional variation.

An insert that fits the smallest item perfectly may be too tight for another item from the same production group.

For this reason, insert measurements often need to account for normal dimensional tolerance.

The material can influence how much variation is acceptable.

Compressible foam may accommodate small differences more easily than a rigid die-cut opening. Folded cardboard structures can provide some flexibility depending on how the walls and locking sections are arranged.

Testing Thickness With the Actual Product

A digital drawing provides useful dimensional information, but a physical sample reveals how the material behaves when the product is inserted.

During testing, attention can be given to several areas.

The product should not require unnecessary force to enter the insert. It should remain in its intended position when the box is moved. The bottom layer should not collapse under normal weight.

The box should also close without pressing heavily against the product.

If multiple items are included, each compartment should maintain enough separation after all products are loaded.

Testing can also reveal whether folded areas become thicker than expected because of overlapping layers.

Balancing Thickness and Internal Space

Insert thickness is ultimately a balance between material behavior and available space.

Very thin material may lack the structure required for the intended arrangement. Excessively thick material may reduce usable volume without solving the actual packaging issue.

Product weight, dimensions, shape, contact points, insert material, cavity depth, and outer box measurements all affect the decision.

Considering these factors together helps explain why insert thickness should not be selected as an isolated measurement. It forms part of the complete relationship between the product, its internal support, and the outer package.
