Your solar inverter serves as the central brain of your entire photovoltaic (PV) system. It continuously converts direct current (DC) generated by rooftop panels into usable alternating current (AC) for household appliances, while monitoring system voltage, current, and grounding safety thousands of times per second.

When an anomaly occurs within the array, roof wiring, or grid connection, the inverter trips its internal safety relays, halts power production, and displays a specific fault code on its digital screen or mobile app.

While minor issues like a temporary grid voltage spike resolve on their own, recurring fault codes indicate active electrical hazards, insulation breakdown, or internal hardware failure. Knowing how to decipher these codes—and understanding when to call a qualified solar system repair near me—protects your financial investment and keeps high-voltage components safe.

The Four Primary Fault Categories: What Your Inverter Is Communicating

Fault codes fall into four main functional categories. Recognizing the underlying cause behind a code prevents accidental damage to high-voltage equipment.

1. Isolation Failure and Ground Faults (ISO Fault, RISO, Ground Error)

• What it means: An isolation or ground fault occurs when live DC voltage leaks into the grounded metal racking, conduit, or roof frame.

• Root Causes: Rodents chewing through conductor insulation, rainwater seeping into cracked MC4 connectors, or cables rubbing against sharp aluminum rail edges.

• Hazard Level: High. High-voltage current can electrify metal roof components, creating severe shock and fire risks.

2. Arc Fault Circuit Interrupter (AFCI, Arc Fault, DC Arc)

• What it means: The inverter detects high-frequency electrical noise indicating a continuous spark jumping across a loose connection or gap in the DC circuit.

• Root Causes: Improperly crimped cable joints, loose terminal screws inside combiner boxes, or corroded module contacts.

• Hazard Level: Critical. DC arcing generates temperatures above $5,000^\circ\text{F}$, making it a primary cause of solar fires.

3. Grid Parameter Errors (Grid Overvoltage, VAC Out of Range, Frequency Error)

• What it means: The utility grid's local voltage or frequency has drifted beyond National Electrical Code (NEC) operating limits, forcing the inverter to disconnect to protect grid stability.

• Root Causes: Localized grid surges, neighborhood transformer congestion, or utility power outages.

• Hazard Level: Low. These are protective grid trips rather than system hardware damage.

4. Over-Temperature and Hardware Faults (OverTemp, Bus Voltage High, CPU Error)

• What it means: Internal component temperatures have exceeded safe limits, or microprocessors detect damaged internal power electronics.

• Root Causes: Clogged cooling fans, degraded thermal paste, direct sunlight exposure, or failed internal capacitors.

• Hazard Level: Moderate to High. Prolonged heat trips can permanently destroy internal circuit boards.

Safe Homeowner Action vs. Professional Repair Scope

Understanding what you can troubleshoot safely versus what requires high-voltage electrical certification protects both your safety and equipment warranties.

Standard Emergency System Isolation Protocol

If your inverter displays an Arc Fault, Ground Fault, or produces a distinct burning odor, follow this safe power-down sequence to isolate the system:

Inverter Shutdown Sequence

Critical Safety Warning: Never attempt to open the main enclosure of a solar inverter or disconnect high-voltage DC wiring yourself. Rooftop DC strings can maintain voltages between $300\text{V}$ and $600\text{V}$ even when the main utility power is shut off, creating a severe risk of electric shock.

Professional Diagnostic Tools: How Specialists Trace Complex Faults

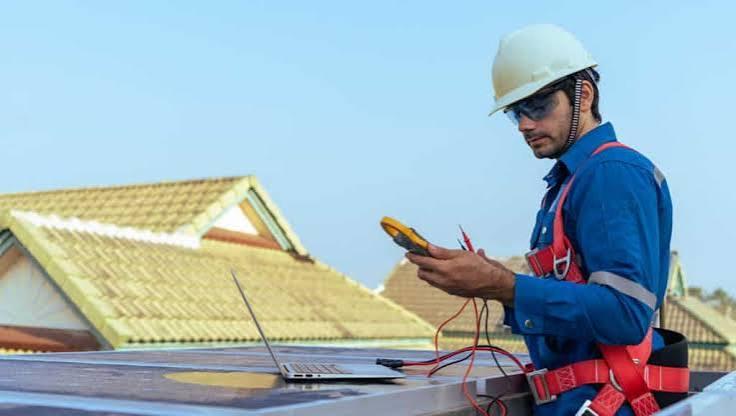

When a technician arrives on site, they use specialized high-voltage testing equipment to locate hidden electrical faults across the array:

1. Insulation Resistance Testers (Megohmmeter / "Megger"): Technicians apply a controlled $500\text{V}$ to $1000\text{V}$ test voltage to individual DC strings to measure insulation resistance. A reading dropping below standard thresholds flags damaged wire casing, moisture intrusion, or a grounded conductor.

2. Thermal Imaging Cameras: Thermography reveals hot connectors, overheating DC switches, and overloaded internal relays that trigger over-temperature shutoffs.

3. Digital Multimeters with PV Adapters: Specialists check string open-circuit voltage ($V_{oc}$) and short-circuit current ($I_{sc}$) to locate dead strings, failed optimizers, or blown DC fuses.

Protect Your Solar Investment and Maintain Warranty Coverage

An inverter displaying persistent error codes is communicating an active protection event. Forcing repeatedly cleared reboots on arc or ground faults can worsen internal damage, void manufacturer warranties, and create real fire risks.

Partnering with a certified solar system repair near me ensures trained technicians isolate wiring faults, replace degraded components, and handle manufacturer warranty claims (RMAs) properly. Timely professional diagnostics keep your array safe, extend equipment lifespan, and restore long-term energy generation.
